Upgraded Bottle Shape Bag Pure Water Filling Machine | Sealing Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Processing Types: | Water | Processing: | Filling Machine |
|---|---|---|---|
| Packaging Type: | Bag | Pouch | Sachet | Various Shape Bag | Pre-shaped Bag | Packaging Material: | PE Or Nylon, BOPP Laminated LDPE |
| Driven Type: | Pneumatic | Screen Display: | English | Español | Français |عربي| |
| PLC: | MITSUBISHI | SIEMENS | DELTA | Packing Items: | Pure Water | Mineral Water |
BD1410/BD1410A 360° ALL VIEW

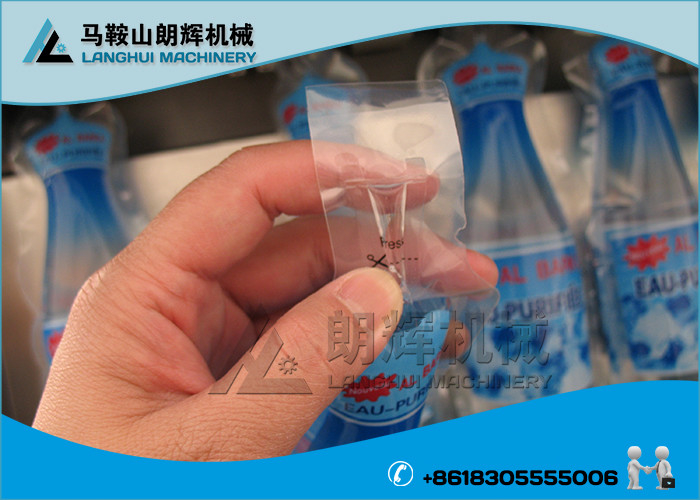

- The stick pouch is a popular international plastic bag. It is also called Expansion Bags | Plastic Bag | Stand Up Pouch | Pre-Shaped Bag | Spout Pouch | Formed Bag | Bottle Shape Pouch | Fruit Shape Pouch | Fruit Shape Bag | Various Shape bag | Sachet | Doypack. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
- It is widely used in dairy products such as Pure Water | Mineral Water | Soda Water | Coconut Water | Carbonated Beverage, etc.
- It adopts 304 stainless steel, and PLC system control.
- Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
- It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.

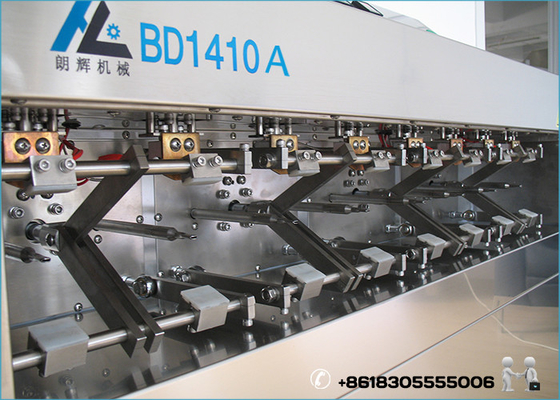

- Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.
- Comprehensive safety design, with earth-leakage protection.
- Each features a modular, easy maintenance.
- Unique filling nozzles and anti-drip valve design, no leaking filling and save cost.
- SUS304 stainless steel

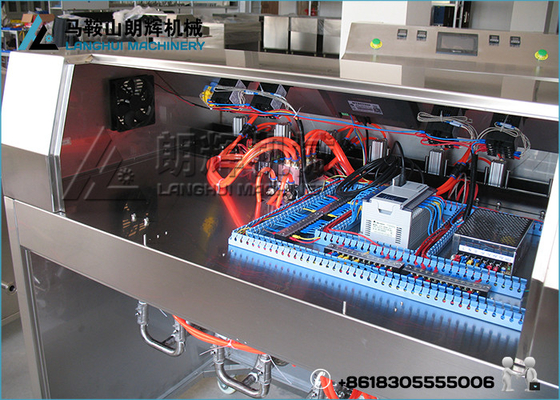

- WEINVIEW touch screen, MITSUBISHI PLC system, Other CHINT electrical equipment.
- AIRTAC pneumatic components
- Food - grade silicone tube

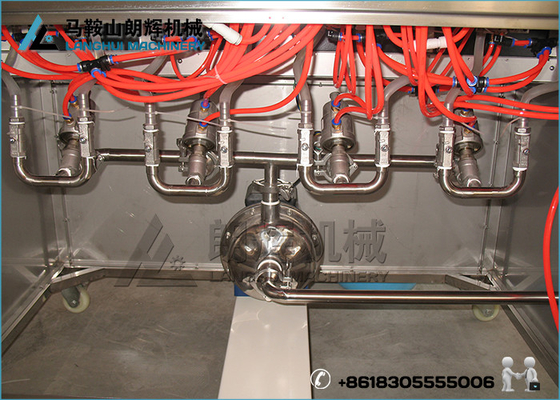

- Sanitary centrifugal pump
| Model | BD1410 | BD1410A | BD1410B |
| Packing rate | 2000-3500 bags/hr | 2000-3500 bags/hr | 2000-3500 bags/hr |
| Filling nozzles | 8 | 8 | 8 |
| Workstation | 2 | 2 | 2 |
| Bag material |
PE or Nylon, BOPP laminated LDPE, various shapes pre-shaped bags |
||
| Film thickness | ＞0.18mm | ＞0.18mm | ＞0.18mm |
| Filling volume | ≤500ml (Custom) | ≤500ml (Custom) | ≤500ml (Custom) |
| Filling accuracy | ≤±2% | ≤±2% | ≤±1% |
| Power input | 220V / 110V 50Hz | 220V / 110V 50Hz | 220V / 110V 50Hz |
| Power | 0.8-1.6 Kw | 0.8-1.6 Kw | 0.8-1.6 Kw |
| Air Pressure | 0.6-0.8 Mpa | 0.6-0.8 Mpa | 0.6-0.8 Mpa |
| Air Consumption | 0.25-0.50 m3/min | 0.25-0.50 m3/min | 0.75-1.25 m3/min |
| Net weight | ≈80 kg | ≈80 kg | ≈120 kg |
| Overall dimension | 1100×700×1050mm3(LWH) | 1100×700×1050mm3(LWH) | 1100×700×1050mm3(LWH) |
| Gross weight | ≈120 kg | ≈120 kg | ≈160 kg |
| Packaging dimension | 1300×850×1250mm3(LWH) | 1300×850×1250mm3(LWH) | 1300×850×1250mm3(LWH) |
