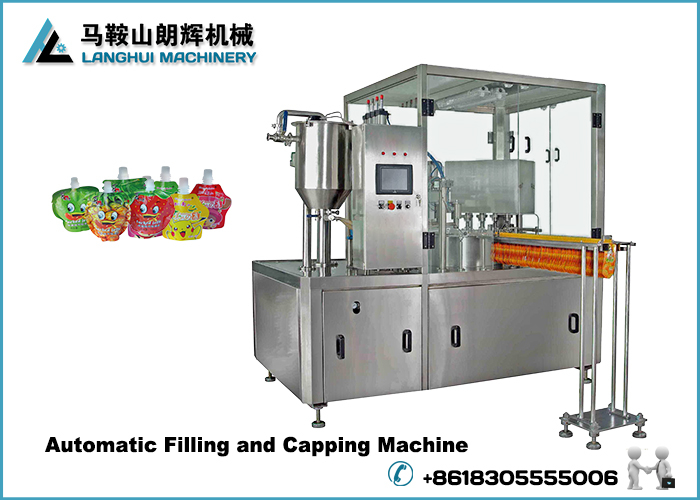

Automatic Filling and Capping Machine For Standup Pouch
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Packaging Type: | Stand-up Pouch | Spout Pouch | Doypack | Pre-shaped Bags | Guarantee: | 12 Month |
|---|---|---|---|
| Packaging Material: | PE Or Nylon, BOPP Laminated LDPE | Driven Type: | Pneumatic |
| Screen Display: | English | Arabic | Filling Accuracy: | ≤±1% |
| PLC: | SIEMENS | OMRON | MITSUBISHI | FUJI, | Pneumatic Component: | FESTO | SMC | AIRTAC |
| Highlight: | filling and sealing machine,Package machinery,filling and capping machine |
||
- The stand-up pouch is a popular international packaging shape. It is also called Spout Pouch | Doypack | Pre-shaped bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
- It is widely used to fill and cap dairy Food | Lactic Acid Drinks | Milk | Yogurt | Vegetable Protein Drinks | Pure Water | Mineral Water | Soda Water | Coconut Water | Carbonated Beverage | Natural Fruit Juice | Beverage | Liquid | Drinks |Soft Drink |Egg Tofu | Japanese Tofu | Tomato Sauce | Salad Dressing | Mayonnaise | Fruit Jam | Candy | Jelly | Ice Pop | Honey | Cosmetic | Laundry Liquid | Shampoo | Daily Chemicals | Detergents |Fire/Alcohol Cream | Soy Sauce | Cooking Oil | Viscous liquid, etc.
- It adopts 304 stainless steel, and PLC system control.
- Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
- The filling volume is adjustable.
- It is the full automatic processing from filling, cleaning spout, put the cap, screw cap, etc.
- Unique screw cap part design, seal suitable location and firm.
- It adopts electronic controlled modulated velocity, precise filling, no foam rising and no leaking.
- Comprehensive safety design, with earth-leakage protection.
- Each features a modular, easy maintenance.
- We can make machine according to the customer's special requirements.
|
Model |
LHZLD-1 |
LHZLD-2 |
LHZLD-3 |
LHZLD-4 |
|
Packaging rage (bags/hr) |
1200-2400 |
3000 |
4000 |
6000 |
|
Filling volume |
50-500 ml |
|||
|
Suitable Packing Materials |
Nylon Pouch | Metalized Pouch | Aluminum Pouch |
|||
|
Timing Mode |
Frequency control |
|||
|
Power |
3.8 kw |
3.8 kw |
5kw |
6 kw |
|
Power input |
380V50HZ 3N-4L |
|||
|
Air Consumption |
0.6m3/min |
0.7m3/min |
0.7m3/min |
0.8m3/min |
