Name: Natural Fruit Juice Filling machine for stand-up pouch
Brand: LANGHUI MACHINERY CO., LTD
SKU: BD1410
Availability: InStock

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	20 days from the date we received your samples and deposit.
Payment Terms:	T/T with 30% deposit and 70% balanced before shipment.
Supply Ability:	150

Contact Now

Detailed Product Description

Processing Types:	Juice	Processing:	Filling Machine
Packaging Bag:	Bag \| Pouch \| Stand-up Pouch \| Various Shapes \| Pre-shaped Bags	Packaging Material:	PE Or Nylon, BOPP Laminated LDPE
Packing Items:	Beverage \| Liquid \| Dairy Food \| Lactic Acid Drinks \| Juice \| Water	PLC:	MITSUBISHI \| SIEMENS \| DELTA
Screen Display:	English \| Español \| Français \|عربي\|	Driven Type:	Pneumatic
Highlight:	filling and sealing machine , package machinery , pre-shaped bags filling machine

BD1410A 360° VIEW

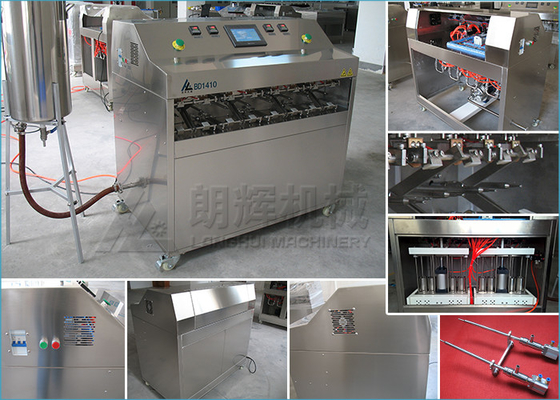

Natural Fruit Juice Filling machine for stand-up pouch

The stick pouch is a popular international plastic bag. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
It is widely used in dairy products such as Pure Water | Mineral Water | Soda Water | Coconut Water | Carbonated Beverage | Natural Fruit Juice | Beverage | Liquid | Drinks |Soft Drink | Viscous liquid, etc.

Natural Fruit Juice Filling machine for stand-up pouch

It adopts 304 stainless steel, and PLC system control.
Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.
Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.
Comprehensive safety design, with earth-leakage protection.
Each features a modular, easy maintenance.
Unique filling nozzles and anti-drip valve design, no leaking filling and save cost(BD1410A/BD1410B)
Unique sanitary pneumatic forced pump design. It improves the filling volume control accuracy less than ±1%.(BD1410B)

THE DIFFERENCE OF POP FILLING NOZZLE & ANTI-DRIP FILLING NOZZLE

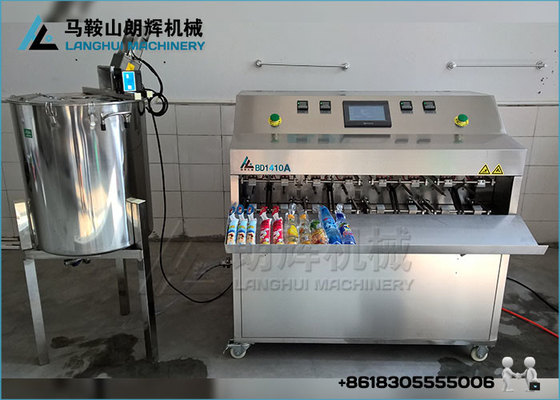

Natural Fruit Juice Filling machine for stand-up pouch

Natural Fruit Juice Filling machine for stand-up pouch

Model	BD1410A
Packing rate	2000-3500 bags/hr
Filling nozzles	8
Workstation	2
Bag material	BOPP laminated LDPE, various shapes pre-shaped bags
Film thickness	＞0.18mm
Filling volume	20~500ml (Custom)
Filling accuracy	<150ml ±(2~5)ml; 150~500ml ≤±2%
Power input	220V 50Hz
Power	0.8-1.6 Kw
Air Pressure	0.6-0.8 Mpa
Air Consumption	0.25-0.50 m³/min
Net weight	≈140 kg
Overall dimension	1150x700x1145mm³(LWH)
Gross weight	≈200 kg
Packaging dimension	1300x900x1300mm³(LWH)
