Semi-automatic Lactic Acid Milk Filling and Sealing Machine for Pouches
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Processing Types: | Milk | Processing: | Filling Machine |
|---|---|---|---|
| Packaging Type: | Bag | Pouch | Stand-up Pouch | Various Shapes | Pre-shaped Bags | Packaging Material: | PE Or Nylon, BOPP Laminated LDPE |
| Packing Items: | Dairy Food | Lactic Acid Drinks | Milk |Yogurt | Screen Display: | English | Español | Français |عربي| |
| PLC: | MITSUBISHI | SIEMENS | DELTA | Driven Type: | Pneumatic |
| Highlight: | filling and sealing machine,bagged egg toufu,beverage filling machine |
||

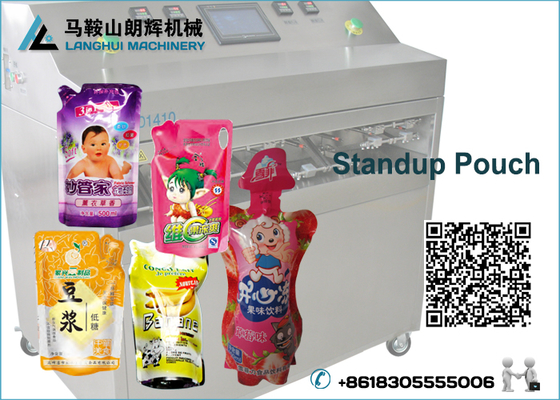

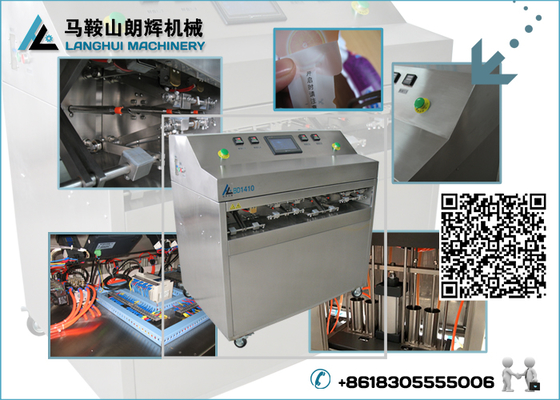

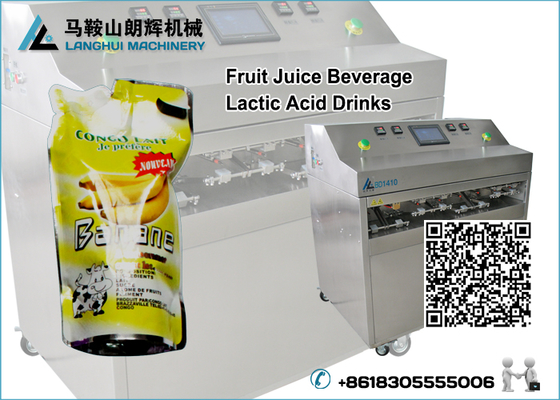

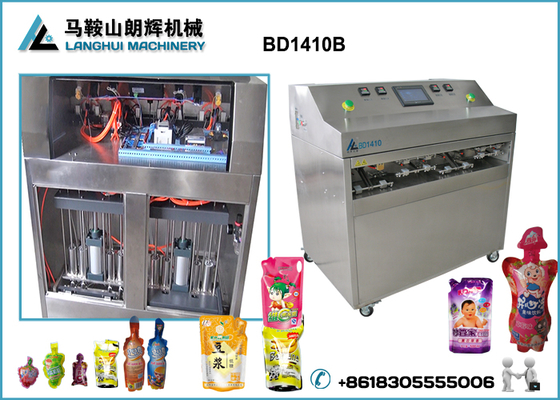

BD1410B 360° ALL VIEW
- The stick bag is a popular international packaging shape. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
- It is widely used in dairy products such as Dairy Food | Lactic Acid Drinks | Milk |Yogurt, etc.
- It adopts 304 stainless steel, and PLC system control.
- Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
- It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.

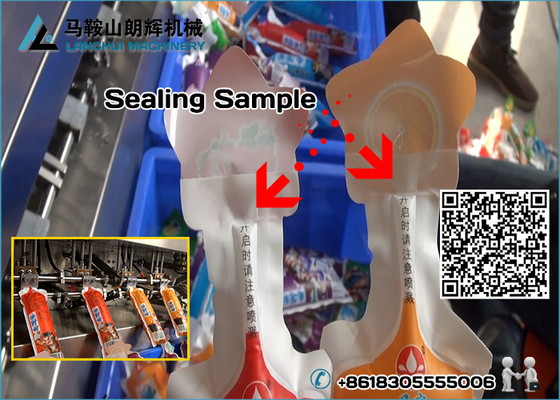

- Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts.
- Comprehensive safety design, with earth-leakage protection.
- Each features a modular, easy maintenance.
- Unique filling nozzles and anti-drip valve design, no leaking filling and save cost.
- Unique sanitary pneumatic forced pump design. It improves the filling volume control accuracy less than ±1%.
- It mainly applied to large viscosity liquid.
- SUS304 stainless steel
- WEINVIEW touch screen, MITSUBISHI PLC system, Other CHINT electrical equipment.
- AIRTAC pneumatic components
- Food - grade silicone tube
- Sanitary pneumatic forced pump
| Model | BD1410B |
| Packing rate | 2000-3500 bags/hr |
| Filling nozzles | 8 |
| Workstation | 2 |
| Bag material |
PE or Nylon, BOPP laminated LDPE, various shapes pre-shaped bags |
| Film thickness | ＞0.18mm |
| Filling volume | ≤500ml (Custom) |
| Filling accuracy | ≤±1% |
| Power input | 220V / 110V 50Hz |
| Power | 0.8-1.6 Kw |
| Air Pressure | 0.6-0.8 Mpa |
| Air Consumption | 0.50-0.75m3/min |
| Net weight | ≈120 kg |
| Overall dimension | 1100×700×1050mm3(LWH) |
| Gross weight | ≈240 kg |
| Packaging dimension | 1300×850×1250mm3(LWH) |
