Semi-automatic Yogurt Filling and Sealing Machine for Stand up Pouches

All Products

Filling and Sealing Machine (34)

Filling and Sealing Machine for Cup (10)

Ice Pop Filling and Sealing Machine (1)

Filling and Capping Machine (17)

Rinser Filling and Capping Machine (1)

Preparation Equipment (2)

Certification

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	20 days from the date we received your samples and deposit.
Payment Terms:	T/T with 30% deposit and 70% balanced before shipment.
Supply Ability:	150

Contact Now

Detailed Product Description

Processing Types:	Milk	Processing:	Filling Machine
Packaging Type:	Bag \| Pouch \| Stand-up Pouch \| Various Shape Bag \| Pre-shaped Bag	Packaging Material:	PE Or Nylon, BOPP Laminated LDPE
Driven Type:	Pneumatic	Screen Display:	English \| Español \| Français \|عربي\|
Plc:	MITSUBISHI \| SIEMENS \| DELTA	Packing Items:	Dairy Food \| Lactic Acid Drinks \| Milk \|Yogurt
High Light:	filling and sealing machine , bagged egg toufu , beverage filling machine

BD1410B 360° ALL VIEW

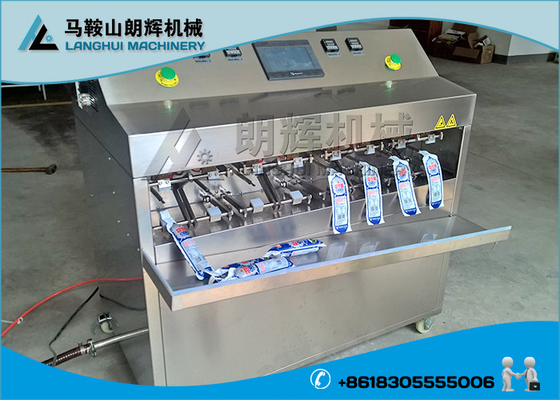

Semi-automatic Yogurt Filling and Sealing Machine for Stand up Pouches

The stick bag is a popular international packaging shape. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
It is widely used in dairy products such as milk, yogurt, lactic acid drinks, dairy food, etc.

Semi-automatic Yogurt Filling and Sealing Machine for Stand up Pouches

It adopts 304 stainless steel, and PLC system control.
Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.

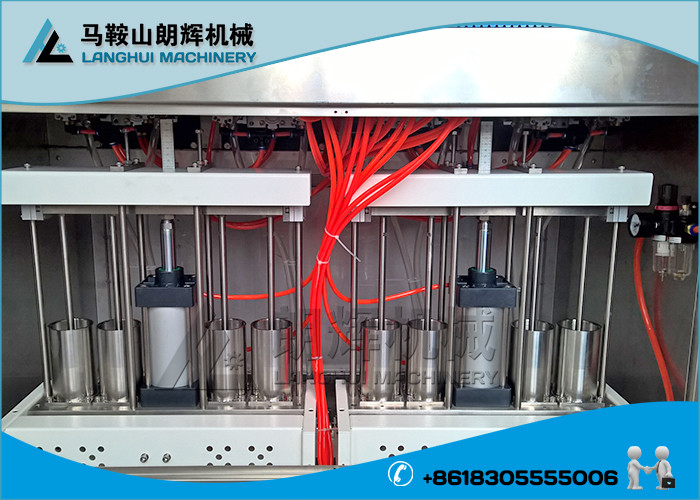

It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.

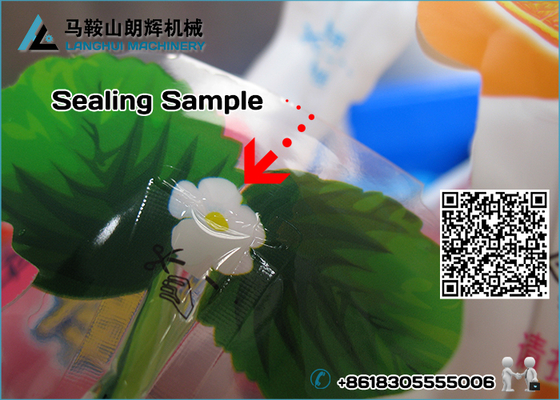

Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts.
Comprehensive safety design, with earth-leakage protection.
Each features a modular, easy maintenance.

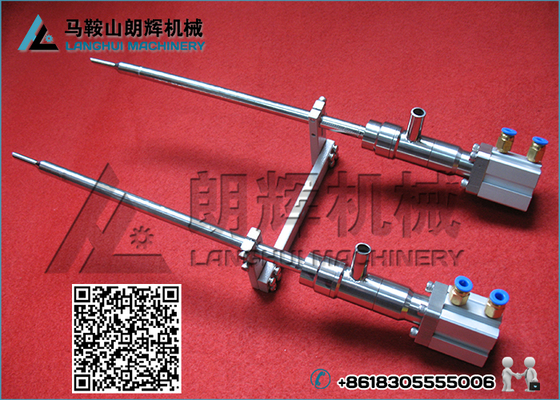

Unique filling nozzles and anti-drip valve design, no leaking filling and save cost.

Semi-automatic Yogurt Filling and Sealing Machine for Stand up Pouches

Semi-automatic Yogurt Filling and Sealing Machine for Stand up Pouches

Model	BD1410B
Packing rate	2000-3500 bags/hr
Filling nozzles	8
Workstation	2
Bag material	PE or Nylon, BOPP laminated LDPE, various shapes pre-shaped bags
Film thickness	＞0.18mm
Filling volume	≤500ml (Custom)
Filling accuracy	≤±2%
Power input	220V / 110V 50Hz
Power	0.8-1.6 Kw
Air Pressure	0.6-0.8 Mpa
Air Consumption	0.50-0.75m³/min
Net weight	≈120 kg
Overall dimension	1100×700×1050mm³(LWH)
Gross weight	≈240 kg
Packaging dimension	1300×850×1250mm³(LWH)
