Natural Fruit Juice Filling Machine and Sealing Machine for Various Shapes Pouches
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Processing Types: | Juice | Processing: | Filling Machine |
|---|---|---|---|
| Packaging Type: | Bag | Pouch | Stand-up Pouch | Various Shape Bag | Pre-shaped Bag | Packaging Material: | PE Or Nylon, BOPP Laminated LDPE |
| Driven Type: | Pneumatic | Screen Display: | English | Español | Français |عربي| |
| PLC: | MITSUBISHI | SIEMENS | DELTA | Packing Items: | Natural Fruit Juice | Beverage | Liquid | Drinks |Soft Drink | Jelly | Ice Pop |
| High Light: | filling and sealing machine,Package machinery,packaging machine |
||

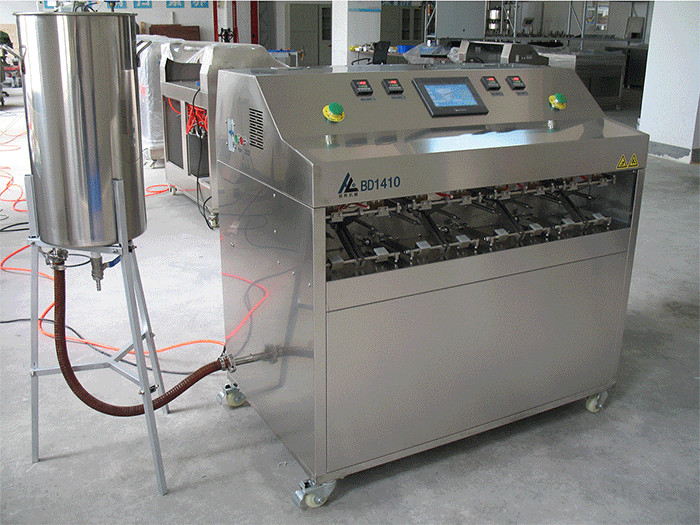

BD1410/BD1410A 360° VIEW

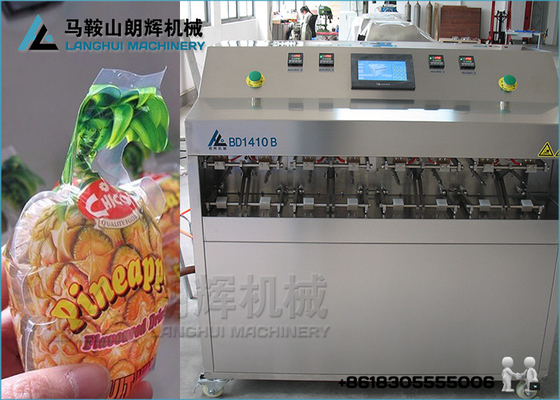

BD1410B 360° VIEW
BD1410/BD1410A BD1410B
- The stick pouch is a popular international plastic bag. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.

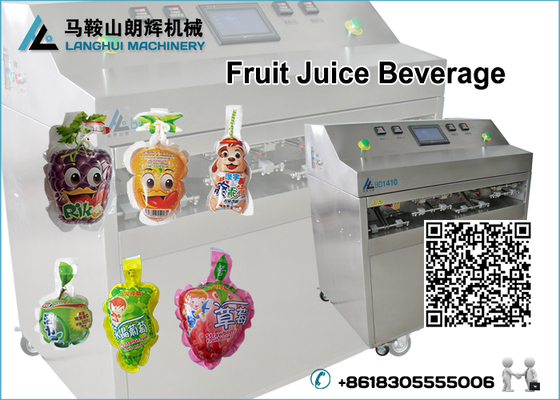

- It is widely used in dairy products such as Dairy Food | Lactic Acid Drinks | Milk | Yogurt | Vegetable Protein Drinks | Pure Water | Mineral Water | Soda Water | Coconut Water | Carbonated Beverage | Natural Fruit Juice | Beverage | Liquid | Drinks |Soft Drink |Egg Tofu | Japanese Tofu | Tomato Sauce | Salad Dressing | Mayonnaise | Fruit Jam | Candy | Jelly | Ice Pop | Honey | Cosmetic | Laundry Liquid | Shampoo | Daily Chemicals | Detergents |Fire/Alcohol Cream | Soy Sauce | Cooking Oil | Viscous liquid, etc.
- It adopts 304 stainless steel, and PLC system control.
- Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
- It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.

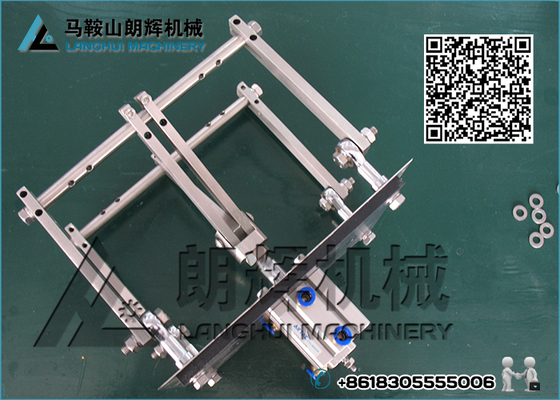

- Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.
- Comprehensive safety design, with earth-leakage protection.
- Each features a modular, easy maintenance.
- Unique filling nozzles and anti-drip valve design, no leaking filling and save cost(BD1410A/BD1410B)
- Unique sanitary pneumatic forced pump design. It improves the filling volume control accuracy less than ±1%.(BD1410B)
THE DIFFERENCE OF POP FILLING NOZZLE & ANTI-DRIP FILLING NOZZLE
- SUS304 stainless steel

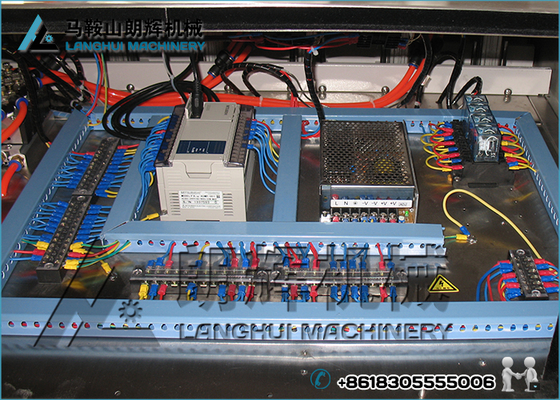

- WEINVIEW touch screen, MITSUBISHI PLC system, Other CHINT electrical equipment.
- AIRTAC pneumatic components
- Food - grade silicone tube
- Sanitary centrifugal pump (BD1410/BD1410A)
- Unique sanitary pneumatic PIISTON pump (BD1410B)
| Model | BD1410 | BD1410A | BD1410B |
| Packing rate | 2000-3500 bags/hr | 2000-3500 bags/hr | 1800-3500 bags/hr |
| Filling nozzles | 8 | 8 | |
| Workstation | 2 | 2 | |
| Bag material | BOPP laminated LDPE, various shapes pre-shaped bags | ||
| Film thickness | ＞0.18mm | ＞0.18mm | |
| Filling volume | 20~500ml (Custom) | 5~200ml (100ml pump) | |
| 80~400ml (200ml pump) | |||
| 150~600ml (300ml pump) | |||
| Filling accuracy | <150ml ±(2~5)ml; 150~500ml ≤±2% | ≤±1% | |
| Power input | 220V 50Hz | 220V 50Hz | |
| Power | 0.8-1.6 Kw | 0.8-1.6 Kw | |
| Air Pressure | 0.6-0.8 Mpa | 0.6-0.8 Mpa | |
| Air Consumption | 0.25-0.50 m3/min | 0.50-0.75 m3/min | |
| Net weight | ≈140 kg | ≈180 kg | |
| Overall dimension | 1150x700x1145mm3(LWH) | 1150x700x1145mm3(LWH) | |
| Gross weight | ≈200 kg | ≈240 kg | |
| Packaging dimension | 1300x900x1300mm3(LWH) | 1300x900x1300mm3(LWH) | |
